VET-JECT®
18-LL Needles
  • Copper content of hub: 59%

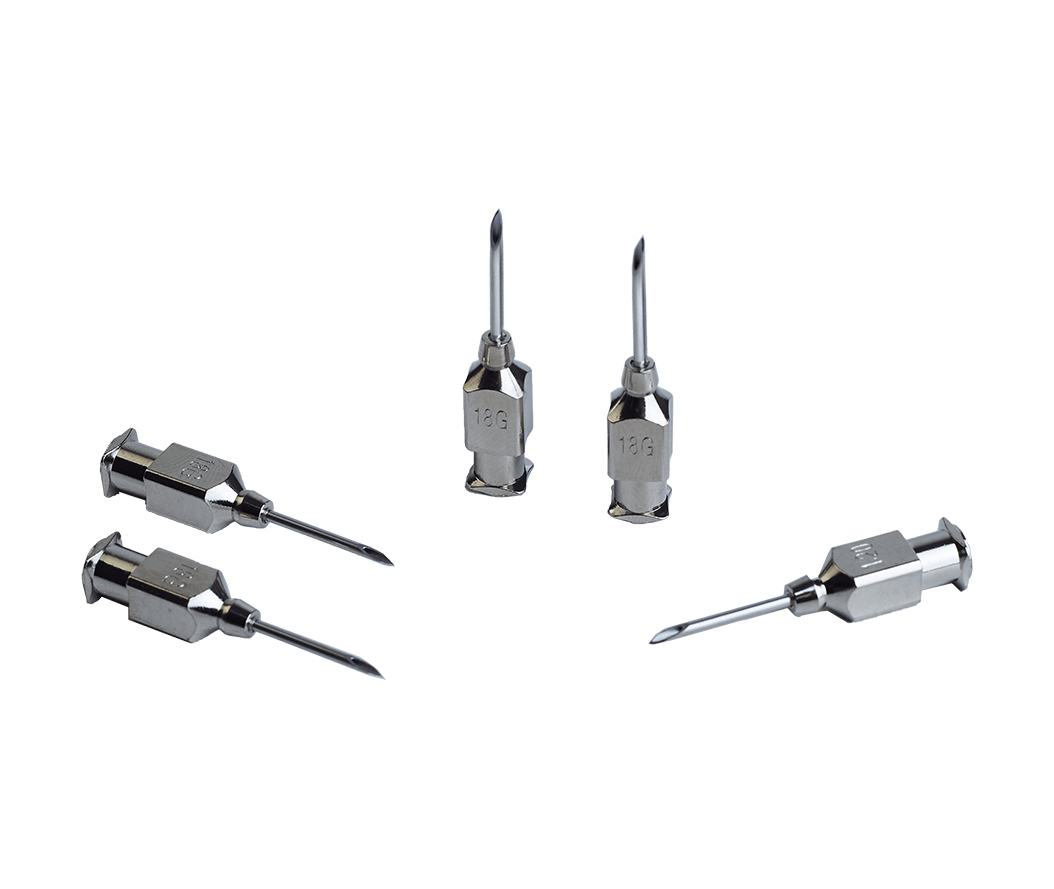

  • Generously-shaped metal hubs, 18mm length, Luer Lock
  • Hubs are marked with mm and gauge information
  • ISO color-coded label for quick identification of diameter

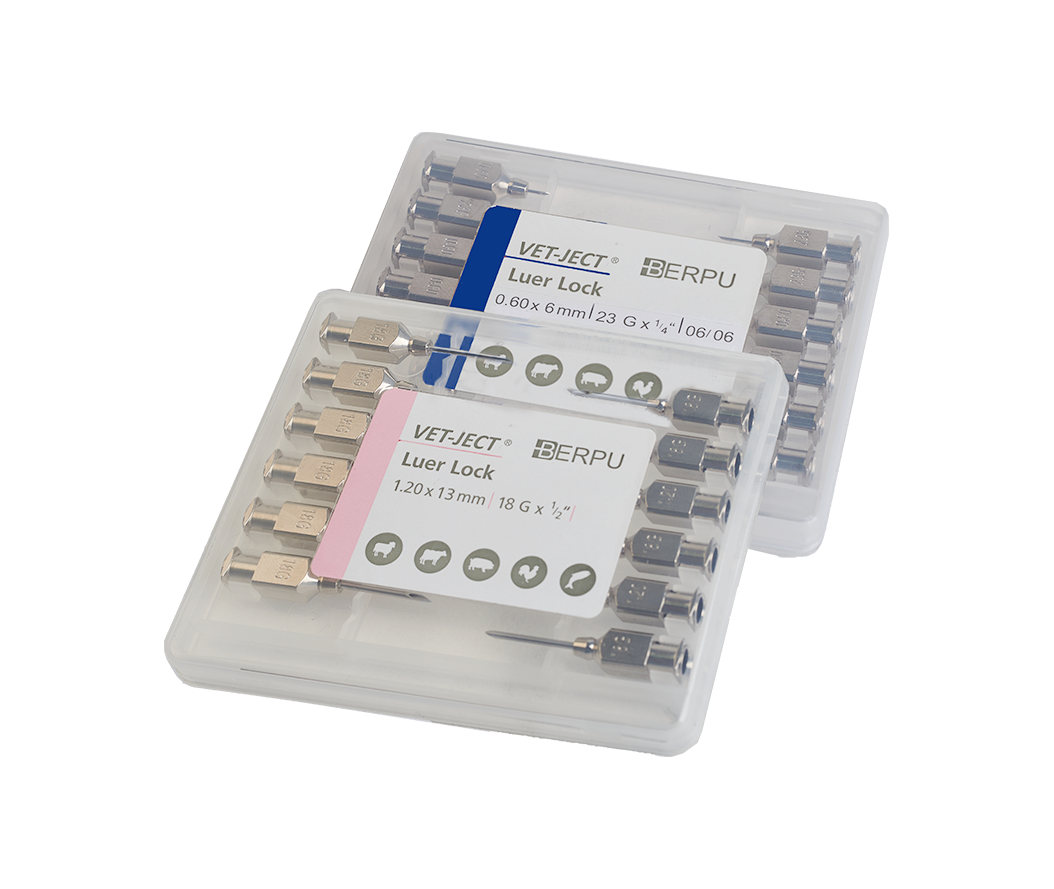

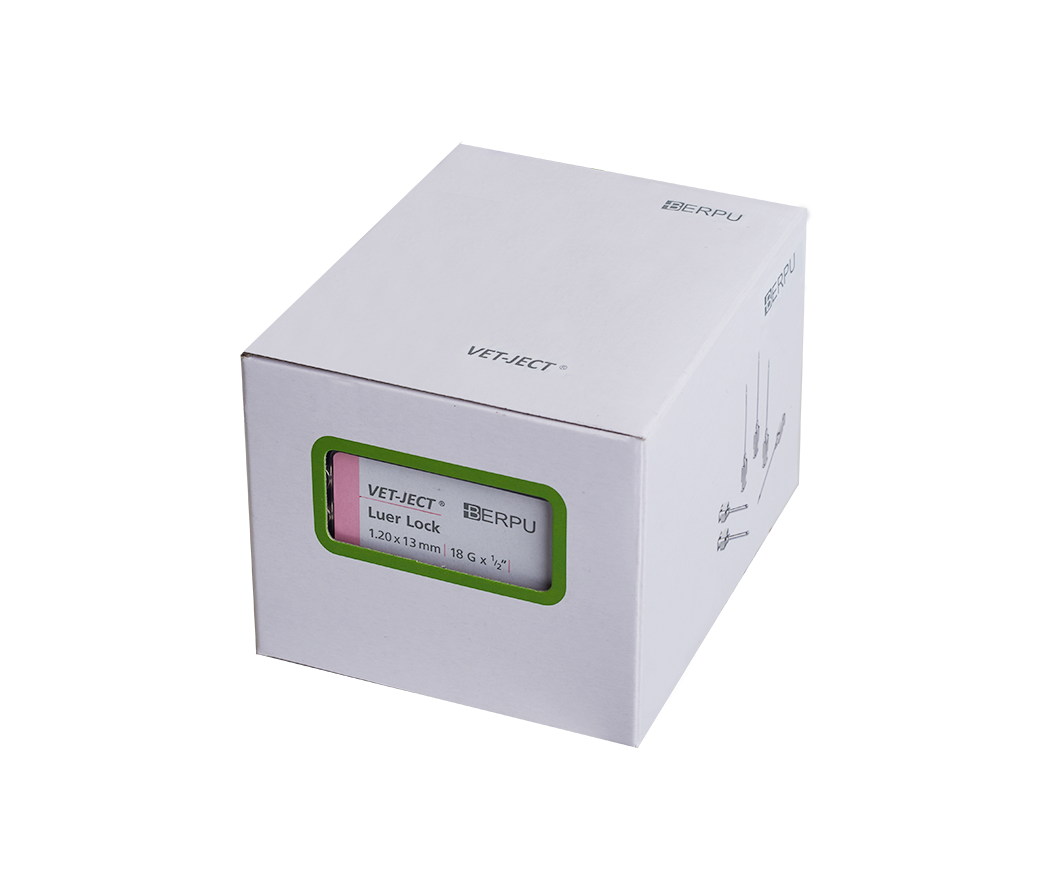

  • Packaging: 12 items per case, 144 per box
Areas of application:
Code Dimensions Color Code
- 0.60 x 3 mm 23 G x 1/8"
- 0.60 x 4 mm 23 G x 1/8"
- 0.60 x 5 mm 23 G x 3/16"
- 0.70 x 3 mm 22 G x 1/8"
- 0.70 x 4 mm 22 G x 1/8"
- 0.70 x 10 mm 22 G x 3/8"
- 0.70 x 13 mm  22 G x 1/2"
- 0.80 x 5 mm 21 G x 3/16"
- 0.80 x 10 mm 21 G x 3/8"
- 0.80 x 15 mm  21 G x 5/8"
- 0.80 x 25 mm 21 G x 1"
- 0.90 x 6 mm 20 G x 1/4"
- 0.90 x 10 mm 20 G x 3/8"
- 0.90 x 13 mm 20 G x 1/2"
- 0.90 x 15 mm  20 G x 5/8"
- 1.00 x 10 mm 19 G x 3/8"
- 1.00 x 13 mm 19 G x 1/2"
- 1.00 x 15 mm 19 G x 5/8"
- 1.00 x 20 mm 19 G x 3/4"
- 1.00 x 25 mm 19 G x 1"
- 1.00 x 30 mm 19 G x 1 1/4"
- 1.20 x 10 mm 18 G x 3/8"
- 1.20 x 13 mm 18 G x 1/2"
- 1.20 x 15 mm 18 G x 5/8"
- 1.20 x 20 mm 18 G x 3/4"
- 1.20 x 25 mm 18 G x 1"
- 1.20 x 30 mm 18 G x 1 1/4"
- 1.20 x 40 mm 18 G x 1 1/2"
- 1.30 x 15 mm -
- 1.30 x 20 mm -
- 1.40 x 10 mm 17 G x 3/8"
- 1.40 x 13 mm 17 G x 1/2"
- 1.40 x 15 mm 17 G x 5/8"
- 1.40 x 20 mm 17 G x 3/4"
- 1.40 x 25 mm 17 G x 1"
- 1.40 x 35 mm 17 G x 1 3/8"
- 1.40 x 40 mm 17 G x 1 1/2"
- 1.50 x 50 mm -
Code Dimensions Color Code
- 1.50 x 15 mm -
- 1.50 x 20 mm -
- 1.50 x 25 mm -
- 1.50 x 30 mm -
- 1.50 x 35 mm -
- 1.50 x 40 mm -
- 1.60 x 6 mm 16 G x 1/4"
- 1.60 x 10 mm  16 G x 3/8"
- 1.60 x 13 mm 16 G x 1/2"
- 1.60 x 15 mm 16 G x 5/8"
- 1.60 x 20 mm 16 G x 3/4"
- 1.60 x 25 mm  16 G x 1"
- 1.60 x 30 mm 16 G x 1 1/4"
- 1.60 x 35 mm  16 G x 1 3/8"
- 1.60 x 40 mm 16 G x 1 1/2"
- 1.80 x 13 mm 15 G x 1/2"
- 1.80 x 15 mm 15 G x 5/8"
- 1.80 x 20 mm  15 G x 3/4"
- 1.80 x 25 mm 15 G x 1"
- 1.80 x 30 mm 15 G x 1 1/4"
- 1.80 x 35 mm 15 G x 1 3/8"
- 1.80 x 40 mm 15 G x 1 1/2"
- 1.80 x 45 mm 15 G x 1 3/4"
- 2.00 x 13 mm 14 G x 1/2"
- 2.00 x 15 mm 14 G x 5/8"
- 2.00 x 20 mm 14 G x 3/4"
- 2.00 x 25 mm 14 G x 1"
- 2.00 x 30 mm 14 G x 1 1/4"
- 2.00 x 35 mm 14 G x 1 3/8"
- 2.00 x 40 mm 14 G x 1 1/2"
- 2.00 x 45 mm 14 G x 1 3/4"
- 2.00 x 50 mm 14 G x 2"
- 2.20 x 15 mm -
- 2.20 x 20 mm -
- 2.20 x 25 mm -
- 2.20 x 30 mm -
- 2.20 x 35 mm -
- 2.40 x 35 mm  13 G x 1 3/8"
Other sizes are available according to customer’s requests
